Suitable for machine of type SPANTHERA 106 LE



PUMP UNIT
APS-ITM0043215
APS-ITM0043215 - PUMP UNIT
VANE KIT (4 PCS)
APS-ITM0043227
APS-ITM0043227 - VANE KIT (4 PCS)
170 X 39 X 4 MM / SET 4 PCS.
AIR FILTER
APS-ITM0038529
APS-ITM0038529 - AIR FILTER
AIR FILTER
APS-ITM0043245
APS-ITM0043245 - AIR FILTER
AIR FILTER
APS-ITM0030234
APS-ITM0030234 - AIR FILTER
SUCKER WASHER
APS-ITM0035994
APS-ITM0035994 - SUCKER WASHER
D 42 / 15 X 1 MM
CLAMP
APS-ITM0010017
APS-ITM0010017 - CLAMP
FIXING BAR 725 MM
APS-ITM0034848
APS-ITM0034848 - FIXING BAR 725 MM
TELESCOPIC BAR 292 - 421 MM
APS-ITM0034794
APS-ITM0034794 - TELESCOPIC BAR 292 - 421 MM
TELESCOPIC BAR 447 - 731MM
APS-ITM0034800
APS-ITM0034800 - TELESCOPIC BAR 447 - 731MM
BRUSH WITH BRASS BRISTLES
APS-ITM0035880
APS-ITM0035880 - BRUSH WITH BRASS BRISTLES
45 X 25 X 15 MM | 18 MM
CHAIN SET GRIPPER BAR (14PCS)
APS-ITM0002226
APS-ITM0002226 - CHAIN SET GRIPPER BAR (14PCS)
We recommend replacing the chain pins when replacing this chain set: 28 x APS-ITM0035757
GRIPPER ASSY, STATIONARY
APS-ITM0034386
APS-ITM0034386 - GRIPPER ASSY, STATIONARY
COMPENSATING PLATE 4 MM
APS-ITM0002385
APS-ITM0002385 - COMPENSATING PLATE 4 MM
1120 X 760 X 4 MM
LOWER STRIPPING FRAME
APS-ITM0010059
APS-ITM0010059 - LOWER STRIPPING FRAME
Incl. Stripping bar 1109 MM + 2 Clamps
STRIPPING PIN 15/4 MM (20X)
APS-ITM0034788
APS-ITM0034788 - STRIPPING PIN 15/4 MM (20X)
Aluminium alternative is APS-ITM0034791
STRIPPING PIN D 11 / 4 MM
APS-ITM0010086
APS-ITM0010086 - STRIPPING PIN D 11 / 4 MM
Aluminium alternative is APS-ITM0073890
PIN HOLDER 5 HOLES (10X)
APS-ITM0034785
APS-ITM0034785 - PIN HOLDER 5 HOLES (10X)
PIN HOLDER 3 HOLES (10X)
APS-ITM0034782
APS-ITM0034782 - PIN HOLDER 3 HOLES (10X)
DRIVE RH
APS-ITM0035076
APS-ITM0035076 - DRIVE RH
DRIVE LH
APS-ITM0035073
APS-ITM0035073 - DRIVE LH
COMPRESSION SPRING
APS-ITM0035820
APS-ITM0035820 - COMPRESSION SPRING
D=1. 9 DM= 15 L= 17 MM
GRIPPER, MOVABLE
APS-ITM0034611
APS-ITM0034611 - GRIPPER, MOVABLE
BUSHING
APS-ITM0035949
APS-ITM0035949 - BUSHING
15. 1 / 17. 1 X 39 MM
SPRAG CLUTCH
APS-ITM0023466
APS-ITM0023466 - SPRAG CLUTCH
TORQUE LIMITATOR
APS-ITM0023463
APS-ITM0023463 - TORQUE LIMITATOR
OD 40 / ID 14 MM
BRUSH
APS-ITM0035895
APS-ITM0035895 - BRUSH
L = 540 MM
BRAKE LINING REPAIR KIT
APS-ITM0024480
APS-ITM0024480 - BRAKE LINING REPAIR KIT
BRAKE LINING REPAIR KIT
APS-ITM0024567
APS-ITM0024567 - BRAKE LINING REPAIR KIT
PRESSURE ROLLER
APS-ITM0035079
APS-ITM0035079 - PRESSURE ROLLER
ANGULAR GEAR
APS-ITM0029529
APS-ITM0029529 - ANGULAR GEAR
Z 20 / D 8 MM
THIN CUTTING PLATES
APS-ITM0007458
APS-ITM0007458 - THIN CUTTING PLATES
Minimum order qty 20 pcs.
18 HRC
THIN CUTTING PLATES
APS-ITM0007461
APS-ITM0007461 - THIN CUTTING PLATES
35 HRC
Minimum order qty 20 pcs.
THIN CUTTING PLATE TOP HARD
APS-ITM0038376
APS-ITM0038376 - THIN CUTTING PLATE TOP HARD
50 HRC
BUSHING (GLISSA)
APS-ITM0035958
APS-ITM0035958 - BUSHING (GLISSA)
12 / 8.25 X 18 MM
SPRING (COMPRESSION)
APS-ITM0035799
APS-ITM0035799 - SPRING (COMPRESSION)
DM 7.7 / 1 X 27 MM
POWER FLO (AXLE)
APS-ITM0040236
APS-ITM0040236 - POWER FLO (AXLE)
SUPPORTING PLATE (DIECUTTING)
APS-ITM0002217
APS-ITM0002217 - SUPPORTING PLATE (DIECUTTING)
GRIPPER BAR
APS-ITM0053220
APS-ITM0053220 - GRIPPER BAR
Spant. Exp cut 106 LE/PE up to S/N 38 ALU
Discount for complete set
POWER FLOW (CLUTCH)
APS-ITM0024606
APS-ITM0024606 - POWER FLOW (CLUTCH)
ROLLER
APS-ITM0026127
APS-ITM0026127 - ROLLER
17 / 30 X 14 MM
SINGLE ROW BALL BEARING
APS-ITM0027636
APS-ITM0027636 - SINGLE ROW BALL BEARING
SYNTHETIC BUSHING
APS-ITM0035964
APS-ITM0035964 - SYNTHETIC BUSHING
12. 1 / 14 X 18 MM
GRIPPER BAR
APS-ITM0034587
APS-ITM0034587 - GRIPPER BAR
Spant. Exp cut 106 LE/PE starting from S/N 38 ALU
Discount for complete set
PALLET
4CB06616
4CB06616 - PALLET
1061 X 760 X 173 MM
SUCTION CUP
APS-ITM0034695
APS-ITM0034695 - SUCTION CUP
Transport cup, 78mm height
SUCTION CUP
APS-ITM0034698
APS-ITM0034698 - SUCTION CUP
Lifting cup, 67,7mm height
POWER FLO (HUB)
APS-ITM0003615
APS-ITM0003615 - POWER FLO (HUB)
VACUUM PUMP
APS-ITM0043224
APS-ITM0043224 - VACUUM PUMP
CARBON VANE KIT (7 PCS)
APS-ITM0038523
APS-ITM0038523 - CARBON VANE KIT (7 PCS)

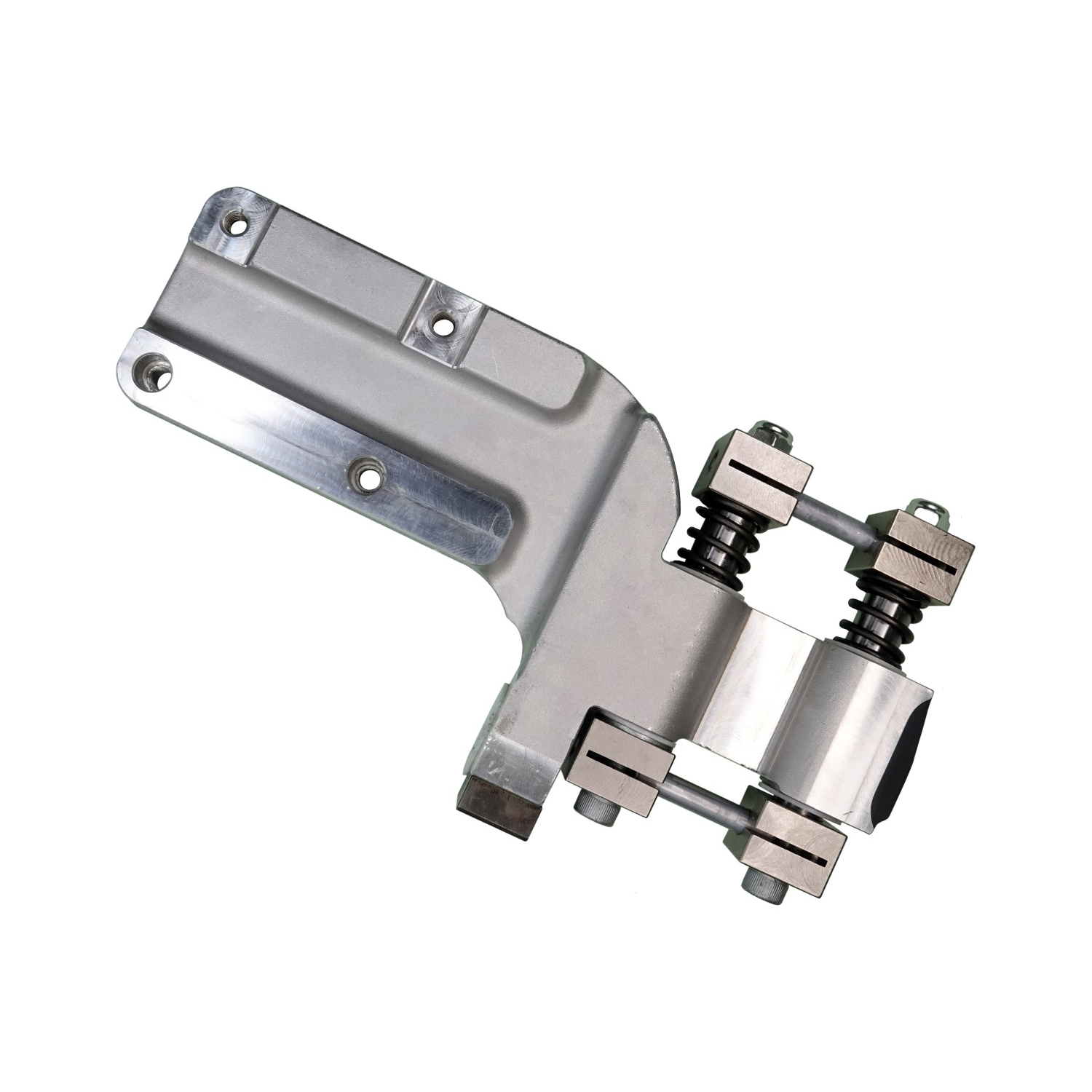

FIXTURE MOUNTED COC
APS-ITM0034602
APS-ITM0034602 - FIXTURE MOUNTED COC
WHEEL
APS-ITM0034689
APS-ITM0034689 - WHEEL
SPACER
APS-ITM0019191
APS-ITM0019191 - SPACER
STRIPP PIN ALU 15/4 MM (20X)
APS-ITM0034791
APS-ITM0034791 - STRIPP PIN ALU 15/4 MM (20X)
STRIPPING PIN ALU 10/4 MM
APS-ITM0073890
APS-ITM0073890 - STRIPPING PIN ALU 10/4 MM
Steel version is APS-ITM0036690
SPROCKET WHEEL O.S.
APS-ITM0002244
APS-ITM0002244 - SPROCKET WHEEL O.S.
SPROCKET WHEEL O.O.S.
APS-ITM0002247
APS-ITM0002247 - SPROCKET WHEEL O.O.S.
MICROMETRIC ADJUSTMENT OS
APS-ITM0002220
APS-ITM0002220 - MICROMETRIC ADJUSTMENT OS
MICROMETRIC ADJUSTMENT OOS
APS-ITM0002223
APS-ITM0002223 - MICROMETRIC ADJUSTMENT OOS
END PIECE
APS-ITM0034635
APS-ITM0034635 - END PIECE
END PIECE
APS-ITM0034638
APS-ITM0034638 - END PIECE
FASTENER OS ALU MOUNTED
APS-ITM0034617
APS-ITM0034617 - FASTENER OS ALU MOUNTED
SPRING
APS-ITM0035100
APS-ITM0035100 - SPRING
SUPPORT
APS-ITM0035106
APS-ITM0035106 - SUPPORT
CLAMP
APS-ITM0013227
APS-ITM0013227 - CLAMP
COMPRESSION SPRING
APS-ITM0035793
APS-ITM0035793 - COMPRESSION SPRING
D=0. 8 DM= 20 L= 50 MM
SPRING
APS-ITM0034902
APS-ITM0034902 - SPRING
BUSHING
APS-ITM0001179
APS-ITM0001179 - BUSHING
HOOK
APS-ITM0036768
APS-ITM0036768 - HOOK
RAIL
APS-ITM0037788
APS-ITM0037788 - RAIL
SMALL PLATE
APS-ITM0037794
APS-ITM0037794 - SMALL PLATE
SMALL PLATE
APS-ITM0037797
APS-ITM0037797 - SMALL PLATE
RING
APS-ITM0002289
APS-ITM0002289 - RING
DRUM
APS-ITM0037776
APS-ITM0037776 - DRUM
BOTTOM PLATE
APS-ITM0002295
APS-ITM0002295 - BOTTOM PLATE
1190 X 838 X 2.0 MM, 48 HRC
PULL ROD
APS-ITM0002322
APS-ITM0002322 - PULL ROD
SMALL PLATE
APS-ITM0038331
APS-ITM0038331 - SMALL PLATE
SHAFT
APS-ITM0034680
APS-ITM0034680 - SHAFT
CENTERING PIECE
APS-ITM0002457
APS-ITM0002457 - CENTERING PIECE
BRUSH (ROTARY)
APS-ITM0037695
APS-ITM0037695 - BRUSH (ROTARY)
D 80 / 26 X 20 MM (Hard)
CYLINDER-LONG
APS-ITM0037413
APS-ITM0037413 - CYLINDER-LONG
COVER
APS-ITM0034716
APS-ITM0034716 - COVER
PLATE
APS-ITM0003159
APS-ITM0003159 - PLATE
CYLINDER
APS-ITM0003759
APS-ITM0003759 - CYLINDER
BLOCK
APS-ITM0004392
APS-ITM0004392 - BLOCK
GUIDING
APS-ITM0006723
APS-ITM0006723 - GUIDING
BLOCK
4CB23111
4CB23111 - BLOCK
GRIPPER BAR
APS-ITM0034593
APS-ITM0034593 - GRIPPER BAR
Difference with APS-ITM0053220: contact us
Discount for complete set
FASTENER OS
APS-ITM0034644
APS-ITM0034644 - FASTENER OS
RUBBER ROLLER
APS-ITM0021699
APS-ITM0021699 - RUBBER ROLLER
PULL-OFF SPRING
APS-ITM0045954
APS-ITM0045954 - PULL-OFF SPRING
GAS SPRING 100N
APS-ITM0026949
APS-ITM0026949 - GAS SPRING 100N
TOOTHED HUB
APS-ITM0029517
APS-ITM0029517 - TOOTHED HUB
PNEUMATIC LIFTER
APS-ITM0030210
APS-ITM0030210 - PNEUMATIC LIFTER
OIL SEAL
APS-ITM0030933
APS-ITM0030933 - OIL SEAL
PIN HOLDER 7 HOLES (10X)
APS-ITM0001713
APS-ITM0001713 - PIN HOLDER 7 HOLES (10X)
Set of 10 pcs

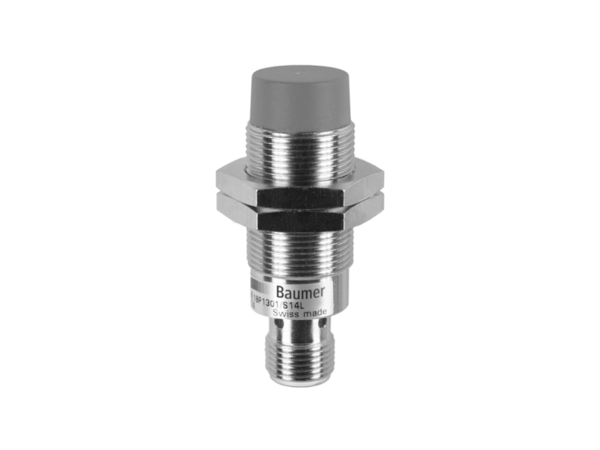

INDUCTIVE SENSOR
4CB57860
4CB57860 - INDUCTIVE SENSOR

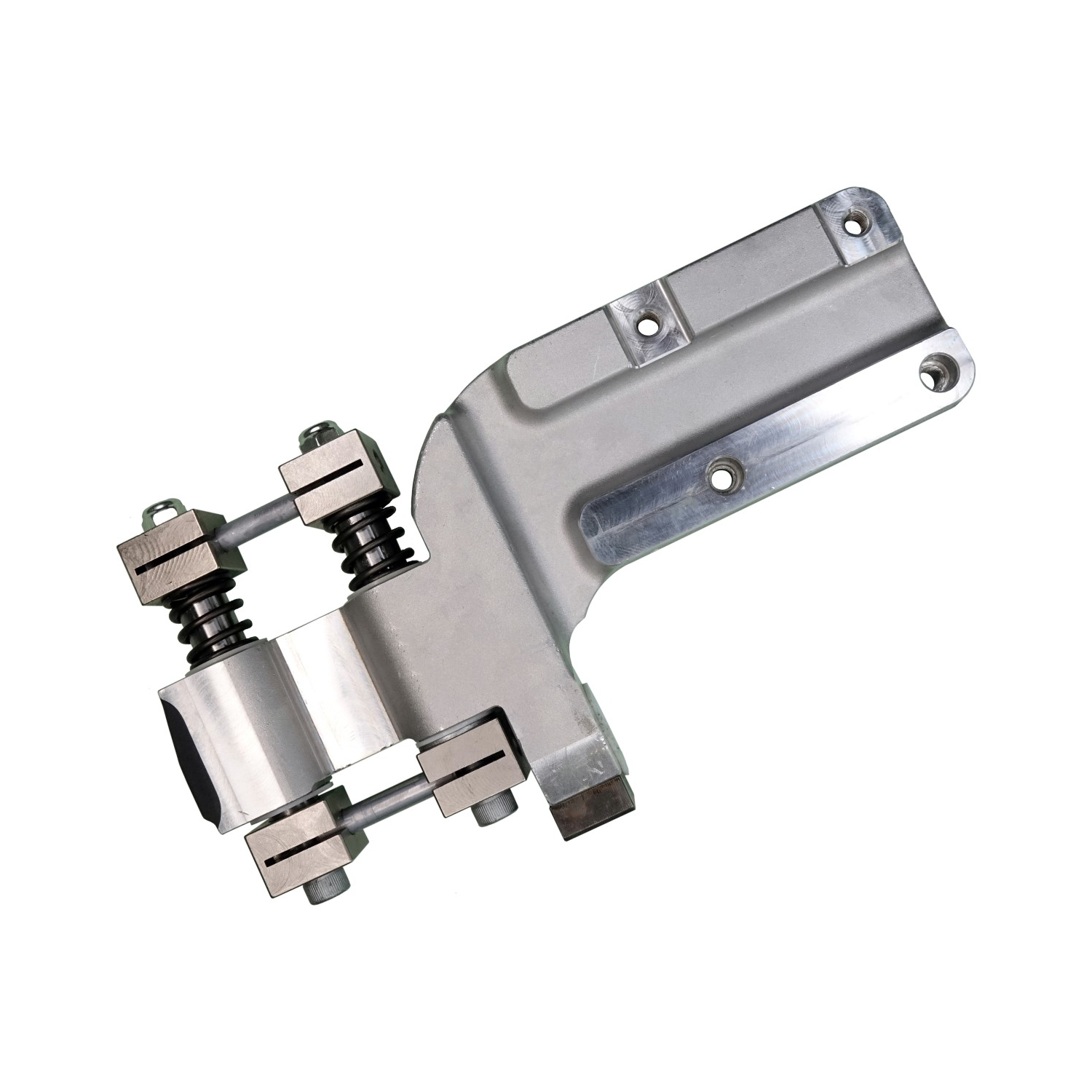

FIXTURE CC
APS-ITM0034599
APS-ITM0034599 - FIXTURE CC
STRIPPING PIN STEEL 10/4 MM
APS-ITM0036690
APS-ITM0036690 - STRIPPING PIN STEEL 10/4 MM
Alumunium version is APS-ITM0073890
PIN HOLDER 9 HOLES (10X)
APS-ITM0047985
APS-ITM0047985 - PIN HOLDER 9 HOLES (10X)
Set of 10 pcs
PIN HOLDER 12 HOLES (10X)
APS-ITM0047991
APS-ITM0047991 - PIN HOLDER 12 HOLES (10X)
FASTENER OOS ALU MOUNTED
APS-ITM0034620
APS-ITM0034620 - FASTENER OOS ALU MOUNTED
ELECTRIC JACK 24 VDC
APS-ITM0062736
APS-ITM0062736 - ELECTRIC JACK 24 VDC
Stroke = 100 MM
PALLET
4CB62133
4CB62133 - PALLET
CHAIN GUIDE DELIVERY
APS-ITM0002691
APS-ITM0002691 - CHAIN GUIDE DELIVERY
GRIPPER, STATIONARY
APS-ITM0002259
APS-ITM0002259 - GRIPPER, STATIONARY
TIKAL TEF-GEL 0.5 KG
APS-ITM0034344
APS-ITM0034344 - TIKAL TEF-GEL 0.5 KG
